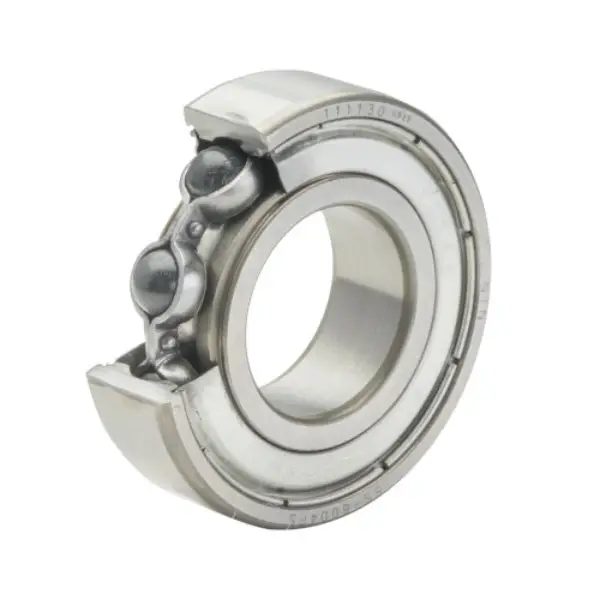

NTN 5S-6213ZZC3/EM
Ceramic Rolling Element Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Ceramic
Limiting Speed - Grease
5500 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 0
Configuration
One
Factor
14.4
Radial Internal Clearance
C3
Static Load Rating
27800 N
Dynamic Load Rating
57500 N
Enclosure
Double Shielded
Weight
0.982 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
65.000 mm
D
120.000 mm
B
23.000 mm
r
1.500 mm
r1
0.500 mm
da min
73.000 mm
da max
80.500 mm
Da max
112.000 mm
ras max
1.500 mm
