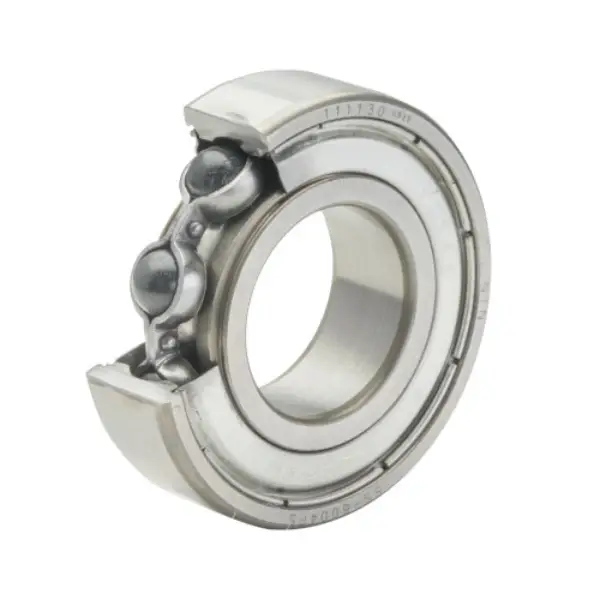

NTN 5S-6307ZZC3/EM
Ceramic Rolling Element Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Ceramic
Limiting Speed - Grease
8800 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 0
Configuration
One
Factor
13.1
Radial Internal Clearance
C3
Static Load Rating
13300 N
Dynamic Load Rating
33500 N
Enclosure
Double Shielded
Weight
0.461 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
35.000 mm
D
80.000 mm
B
21.000 mm
r
1.500 mm
r1
0.500 mm
da min
43.000 mm
da max
47.000 mm
Da max
72.000 mm
ras max
1.500 mm
