NTN 60/2.5

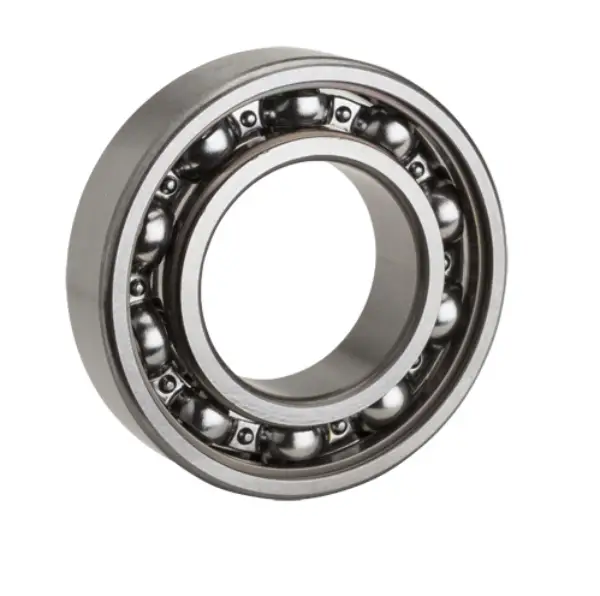

Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
66000 RPM
Limiting Speed - Grease
56000 RPM
Precision
Class 0
Configuration
One
Factor
11.5
Radial Internal Clearance
CN
Static Load Rating
174 N
Dynamic Load Rating
610 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
2.500 mm
D
8.000 mm
B
2.800 mm
r
0.150 mm
ras max
0.150 mm
