NTN 60/28LU
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
8400 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
48.0
Radial Internal Clearance
CN
Static Load Rating
7400 N
Dynamic Load Rating
13800 N
Enclosure
Single Sealed
Weight
0.094 kg
Operating Temperature Range
-40 to 120 ºC

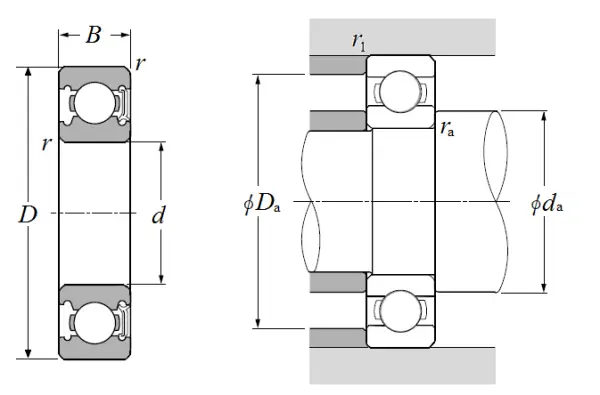

Dimensional Specifications
d
28.000 mm
D
52.000 mm
B
12.000 mm
r
0.600 mm
r1
0.500 mm
da min
32.000 mm
da max
34.000 mm
Da max
48.000 mm
ras max
0.600 mm
