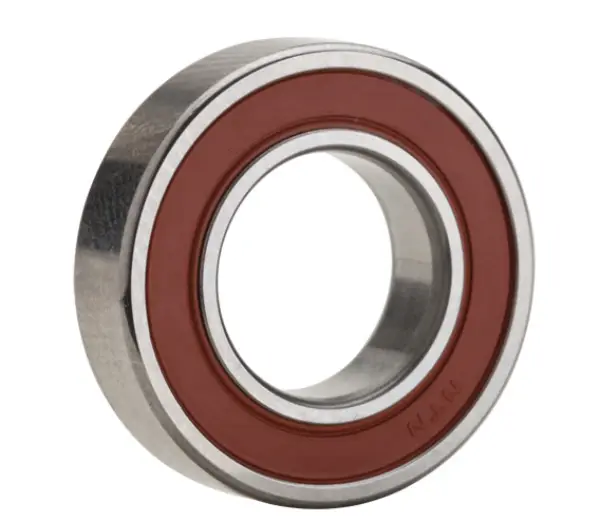

NTN 6000LUC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
21000 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
24.0
Radial Internal Clearance
C3
Static Load Rating
1960 N
Dynamic Load Rating
5050 N
Enclosure
Single Sealed
Weight
0.018 kg
Operating Temperature Range
-40 to 120 ºC

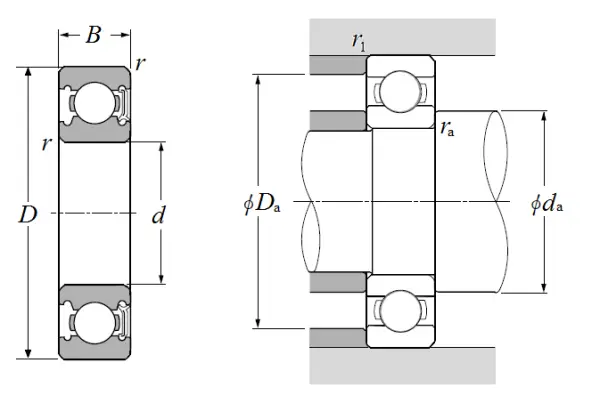

Dimensional Specifications
d
10.000 mm
D
26.000 mm
B
8.000 mm
r
0.300 mm
da min
12.000 mm
da max
13.5 mm
Da max
24 mm
ras max
0.300 mm
