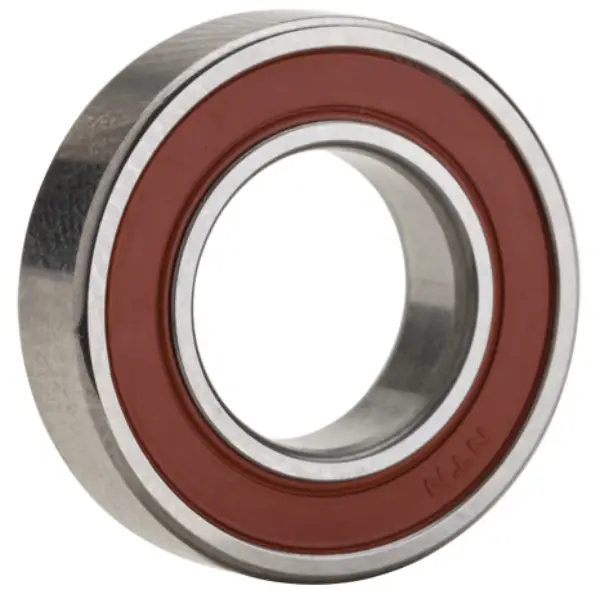

NTN 6002FT150
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
14000 RPM
Limiting Speed - Grease
14000 RPM
Seal Type
Contact
Seal Material
Viton
Precision
ISO Class 0
Configuration
One
Factor
13.9
Radial Internal Clearance
C3
Static Load Rating
2840 N
Dynamic Load Rating
6200 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 150 ºC
Dimensional Specifications
d
15.000 mm
D
32.000 mm
B
9.000 mm
r
0.300 mm
r1
0.300 mm
da min
17.000 mm
da max
19.000 mm
Da max
30.000 mm
ras max
0.300 mm
