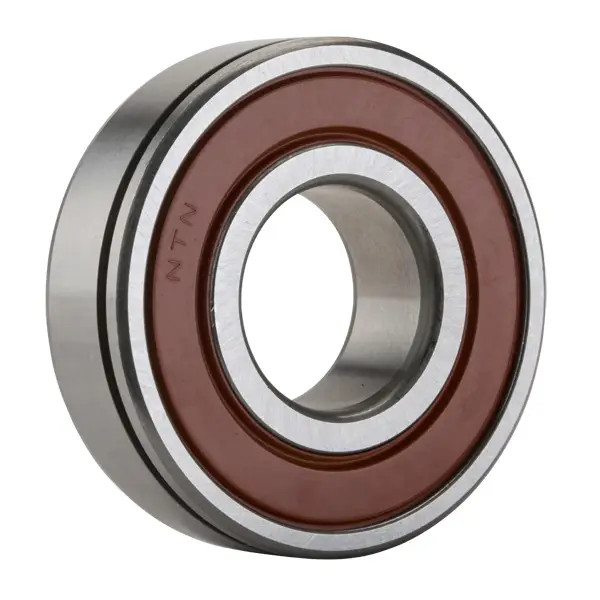

NTN 6002LUN
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
15000 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Factor
13.9
Radial Internal Clearance
CN
Static Load Rating
2840 N
Dynamic Load Rating
6200 N
Enclosure
Single Sealed
Weight
0.030 kg
Operating Temperature Range
-40 to 120 ºC

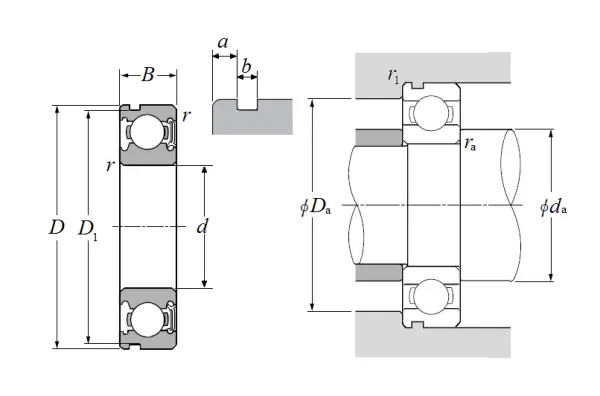

Dimensional Specifications
d
15.000 mm
D
32.000 mm
B
9.000 mm
D1
30.150 mm
a
2.060 mm
b
1.350 mm
r
0.300 mm
r1
0.300 mm
da min
17.000 mm
da max
19.000 mm
Da max
30.000 mm
ras max
0.300 mm
