NTN 6003HVZZ
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
35000 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 0
Configuration
One
Factor
14.4
Radial Internal Clearance
CN
Static Load Rating
3250 N
Dynamic Load Rating
5800 N
Enclosure
Double Shielded
Weight
0.040 kg
Operating Temperature Range
-50 to 120 ºC

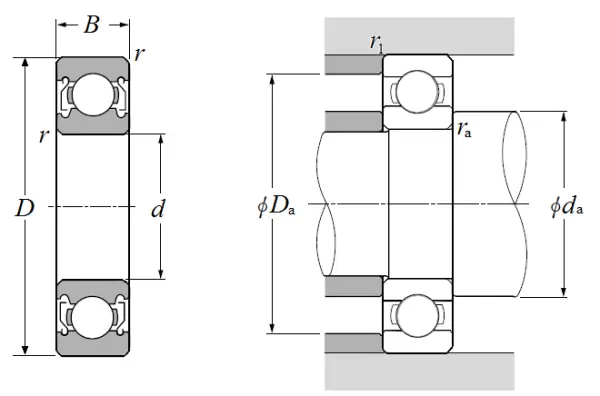

Dimensional Specifications
d
17.000 mm
D
35.000 mm
B
10.000 mm
r
0.300 mm
r1
0.300 mm
da min
19.000 mm
da max
21.000 mm
Da max
33.000 mm
ras max
0.300 mm
