NTN 6003LH
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
24000 RPM
Limiting Speed - Grease
20000 RPM
Seal Type
Light Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
33.0
Radial Internal Clearance
CN
Static Load Rating
3350 N
Dynamic Load Rating
7550 N
Enclosure
Single Sealed
Operating Temperature Range
-40 to 120 ºC

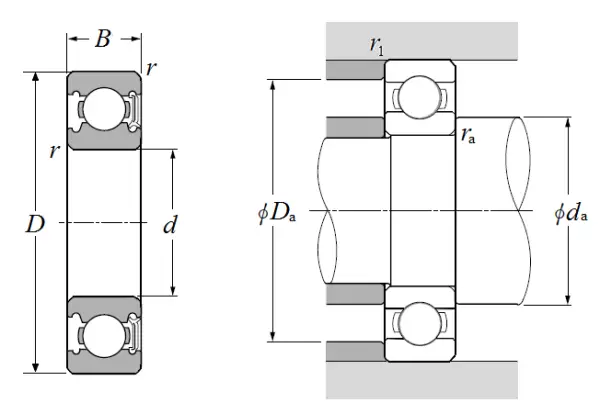

Dimensional Specifications
d
17.000 mm
D
35.000 mm
B
10.000 mm
r
0.300 mm
r1
0.300 mm
da min
19.000 mm
da max
21.000 mm
Da max
33.000 mm
ras max
0.300 mm
