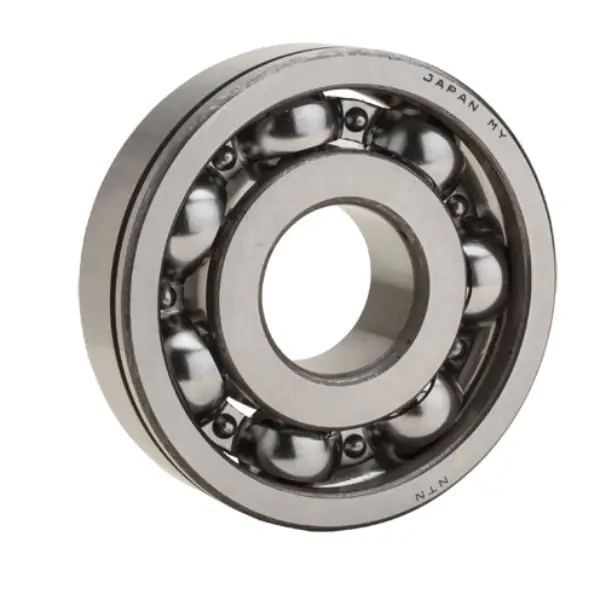

NTN 6003NC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
24000 RPM
Limiting Speed - Grease
20000 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
13.6
Radial Internal Clearance
C3
Static Load Rating
3350 N
Dynamic Load Rating
7550 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

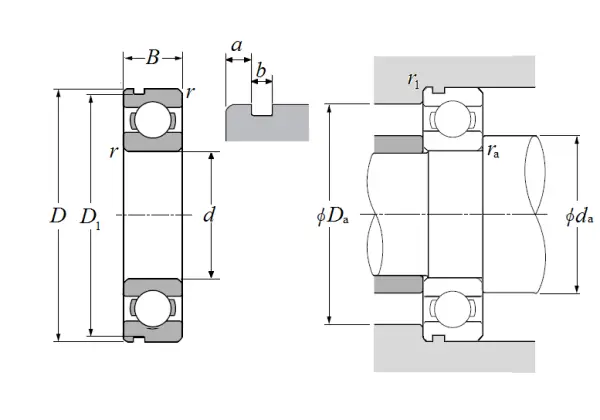

Dimensional Specifications
d
17.000 mm
D
35.000 mm
B
10.000 mm
D1
33.170 mm
a
2.060 mm
b
1.350 mm
r
0.300 mm
r1
0.300 mm
da min
19.000 mm
da max
21.000 mm
Da max
33.000 mm
ras max
0.300 mm
