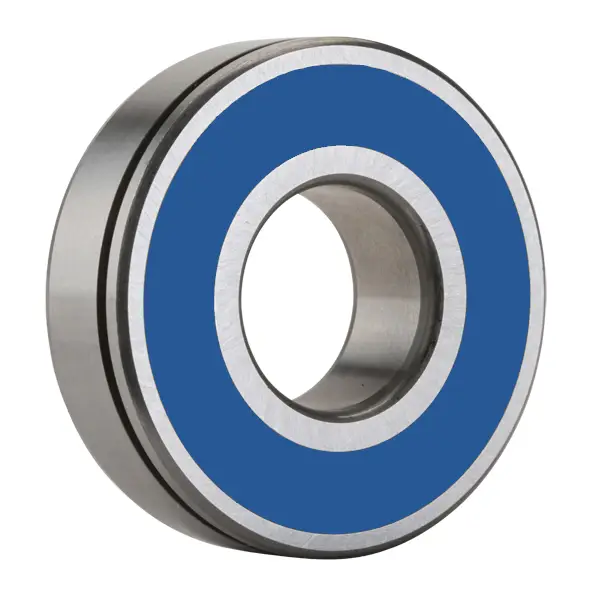

NTN 6005LHN
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
18000 RPM
Limiting Speed - Grease
15000 RPM
Seal Type
Light Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Factor
14.5
Radial Internal Clearance
CN
Static Load Rating
5850 N
Dynamic Load Rating
11200 N
Enclosure
Single Sealed
Weight
0.080 kg
Operating Temperature Range
-40 to 120 ºC

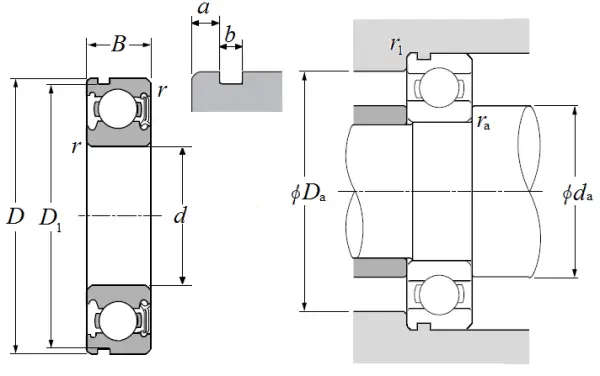

Dimensional Specifications
d
25.000 mm
D
47.000 mm
B
12.000 mm
D1
44.600 mm
a
2.060 mm
b
1.350 mm
r
0.600 mm
r1
0.500 mm
da min
29.000 mm
da max
30.500 mm
Da max
43.000 mm
ras max
0.600 mm
