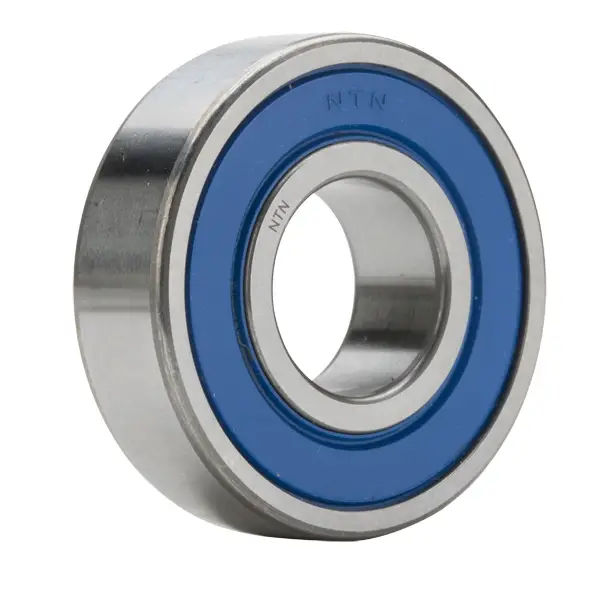

NTN 6006LHC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
15000 RPM
Limiting Speed - Grease
13000 RPM
Seal Type
Light Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
50.0
Radial Internal Clearance
C3
Static Load Rating
8300 N
Dynamic Load Rating
14700 N
Enclosure
Single Sealed
Operating Temperature Range
-40 to 120 ºC

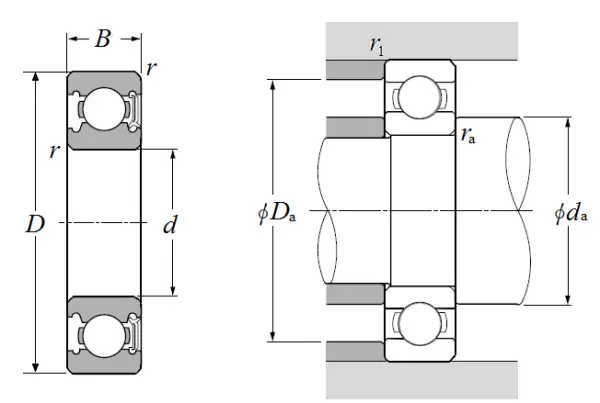

Dimensional Specifications
d
30.000 mm
D
55.000 mm
B
13.000 mm
r
1.000 mm
r1
0.500 mm
da min
35.000 mm
da max
37.000 mm
Da max
50.000 mm
ras max
1.000 mm
