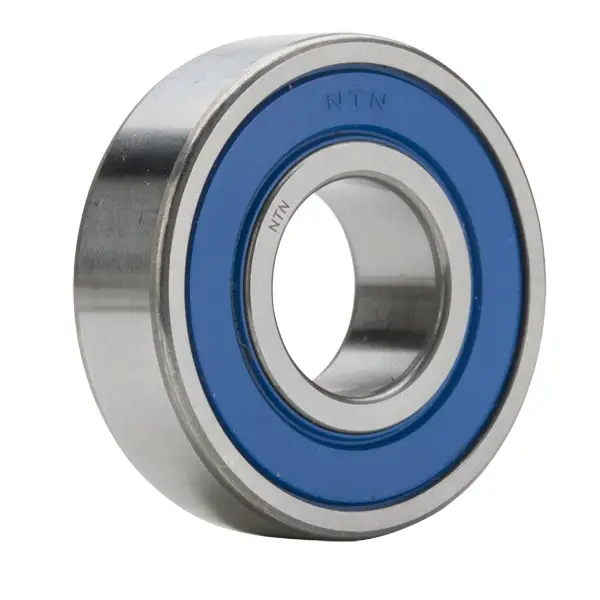

NTN 6007LLH
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
8200 RPM
Seal Type
Light Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
14.8
Radial Internal Clearance
CN
Static Load Rating
10300 N
Dynamic Load Rating
17700 N
Enclosure
Double Sealed
Weight
0.147 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
35.000 mm
D
62.000 mm
B
14.000 mm
r
1.000 mm
r1
0.500 mm
da max
42.000 mm
ras max
1.000 mm
