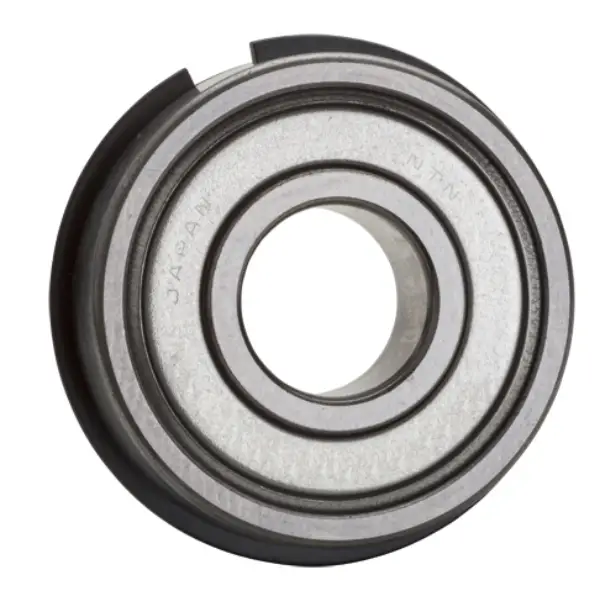

NTN 6007ZNR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
14000 RPM
Limiting Speed - Grease
12000 RPM
Precision
ISO Class 0
Configuration
One
Factor
14.8
Radial Internal Clearance
CN
Static Load Rating
10300 N
Dynamic Load Rating
17700 N
Enclosure
Single Shielded
Weight
0.151 kg
Operating Temperature Range
-40 to 120 ºC

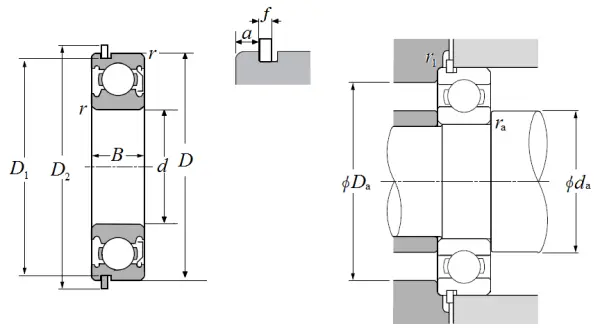

Dimensional Specifications
d
35.000 mm
D
62.000 mm
B
14.000 mm
D1
59.610 mm
D2
67.700 mm
a
2.080 mm
f
1.700 mm
r
1.000 mm
r1
0.500 mm
da min
40.000 mm
da max
42.000 mm
Da max
57.000 mm
ras max
1.000 mm
