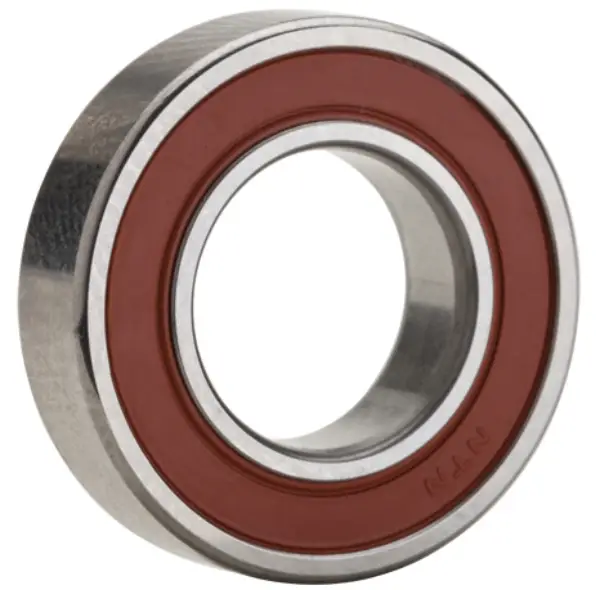

NTN 6008HT200
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
2700 RPM
Seal Type
Contact
Seal Material
Viton
Precision
ISO Class 0
Configuration
One
Factor
15.2
Radial Internal Clearance
C4
Static Load Rating
11500 N
Dynamic Load Rating
18600 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 200 ºC
Dimensional Specifications
d
40.000 mm
D
68.000 mm
B
15.000 mm
r
1.000 mm
r1
0.500 mm
da min
45.000 mm
da max
47.000 mm
Da max
63.000 mm
ras max
1.000 mm
