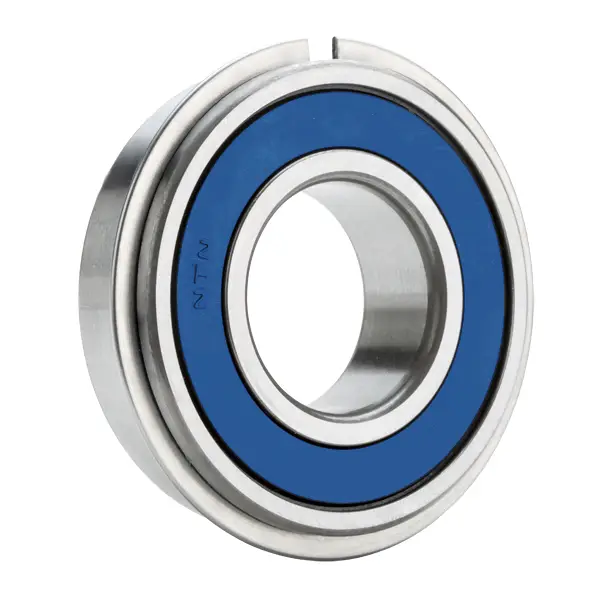

NTN 6008LHNRC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
12000 RPM
Limiting Speed - Grease
10000 RPM
Seal Type
Light Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
15.2
Radial Internal Clearance
C3
Static Load Rating
11500 N
Dynamic Load Rating
18600 N
Enclosure
Single Sealed
Operating Temperature Range
-40 to 120 ºC

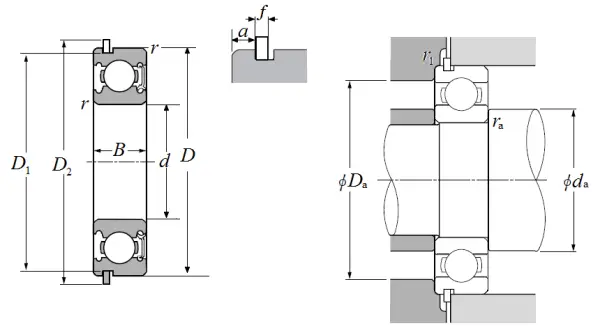

Dimensional Specifications
d
40.000 mm
D
68.000 mm
B
15.000 mm
D1
64.820 mm
D2
74.600 mm
a
2.490 mm
f
1.700 mm
r
1.000 mm
r1
0.500 mm
da min
45.000 mm
da max
47.000 mm
Da max
63.000 mm
ras max
1.000 mm
