NTN 6009LU
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
5400 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
70.0
Radial Internal Clearance
CN
Static Load Rating
15100 N
Dynamic Load Rating
23200 N
Enclosure
Single Sealed
Weight
0.237 kg
Operating Temperature Range
-40 to 120 ºC

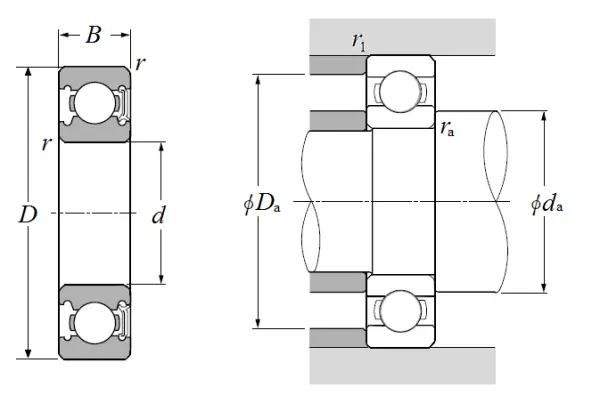

Dimensional Specifications
d
45.000 mm
D
75.000 mm
B
16.000 mm
r
1.000 mm
r1
0.500 mm
da min
50.000 mm
da max
52.500 mm
Da max
70.000 mm
ras max
1.000 mm
