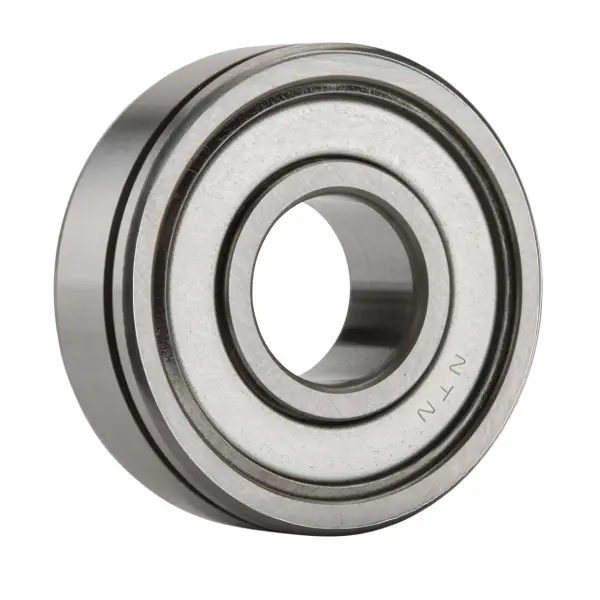

NTN 6009ZZN
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
9200 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
15.3
Radial Internal Clearance
CN
Static Load Rating
15100 N
Dynamic Load Rating
23200 N
Enclosure
Double Shielded
Operating Temperature Range
-40 to 120 ºC

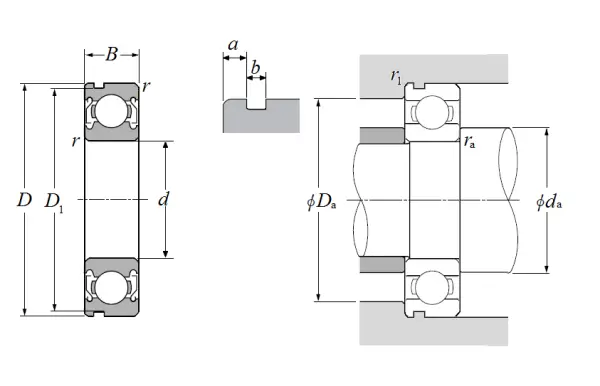

Dimensional Specifications
d
45.000 mm
D
75.000 mm
B
16.000 mm
D1
71.830 mm
a
2.490 mm
b
1.900 mm
r
1.000 mm
r1
0.500 mm
da min
50.000 mm
da max
52.500 mm
Da max
70.000 mm
ras max
1.000 mm
