NTN 6011LU
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
4500 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
83.5
Radial Internal Clearance
CN
Static Load Rating
21200 N
Dynamic Load Rating
31500 N
Enclosure
Single Sealed
Weight
0.376 kg
Operating Temperature Range
-40 to 120 ºC

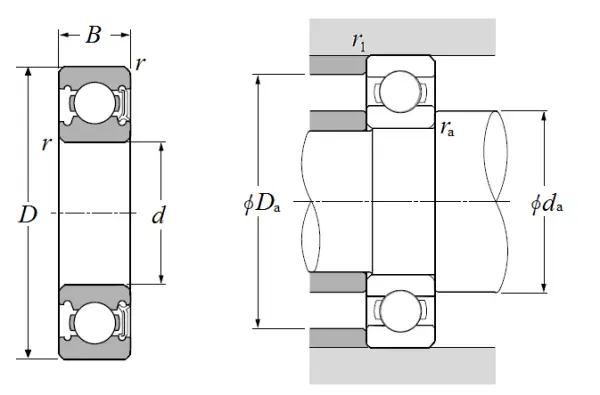

Dimensional Specifications
d
55.000 mm
D
90.000 mm
B
18.000 mm
r
1.100 mm
r1
0.500 mm
da min
61.500 mm
da max
64.000 mm
Da max
83.500 mm
ras max
1.000 mm
