NTN 6011ZNR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
9000 RPM
Limiting Speed - Grease
7700 RPM
Precision
ISO Class 0
Configuration
One
Factor
15.3
Radial Internal Clearance
CN
Static Load Rating
21200 N
Dynamic Load Rating
31500 N
Enclosure
Single Shielded
Weight
0.391 kg
Operating Temperature Range
-40 to 120 ºC

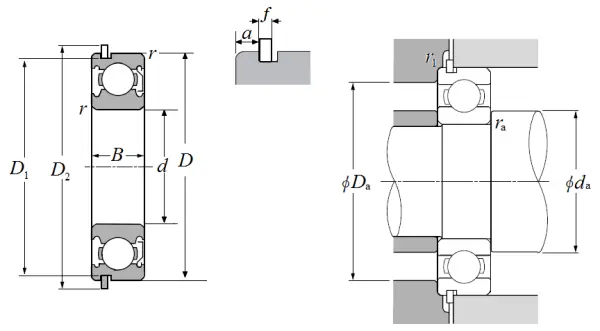

Dimensional Specifications
d
55.000 mm
D
90.000 mm
B
18.000 mm
D1
86.790 mm
D2
96.500 mm
a
2.870 mm
f
2.460 mm
r
1.100 mm
r1
0.500 mm
da min
61.500 mm
da max
64.000 mm
Da max
83.500 mm
ras max
1.000 mm
