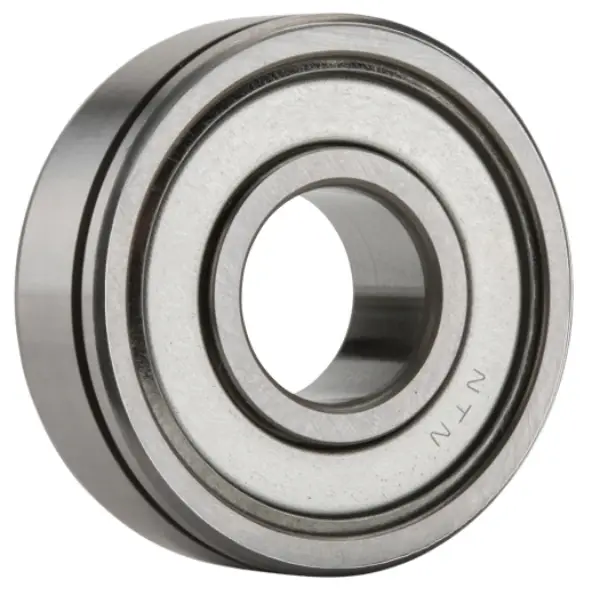

NTN 6012ZNC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
8300 RPM
Limiting Speed - Grease
7000 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
15.6
Radial Internal Clearance
C3
Static Load Rating
23200 N
Dynamic Load Rating
32500 N
Enclosure
Single Shielded
Weight
0.414 kg
Operating Temperature Range
-40 to 120 ºC

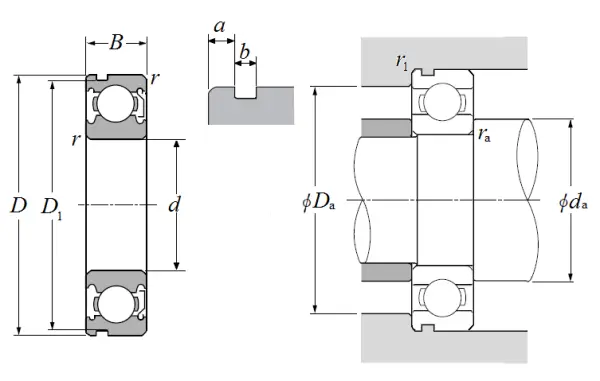

Dimensional Specifications
d
60.000 mm
D
95.000 mm
B
18.000 mm
D1
91.820 mm
a
2.870 mm
b
2.700 mm
r
1.100 mm
r1
0.500 mm
da min
66.500 mm
da max
69.000 mm
Da max
88.500 mm
ras max
1.000 mm
