NTN 6012ZZNR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
7000 RPM
Precision
ISO Class 0
Configuration
One
Factor
15.6
Radial Internal Clearance
CN
Static Load Rating
23200 N
Dynamic Load Rating
32500 N
Enclosure
Double Shielded
Weight
0.428 kg
Operating Temperature Range
-40 to 120 ºC

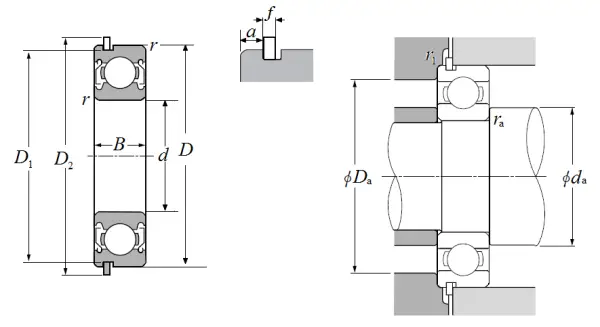

Dimensional Specifications
d
60.000 mm
D
95.000 mm
B
18.000 mm
D1
91.820 mm
D2
101.600 mm
a
2.870 mm
f
2.460 mm
r
1.100 mm
r1
0.500 mm
da min
66.500 mm
da max
69.000 mm
Da max
88.500 mm
ras max
1.000 mm
