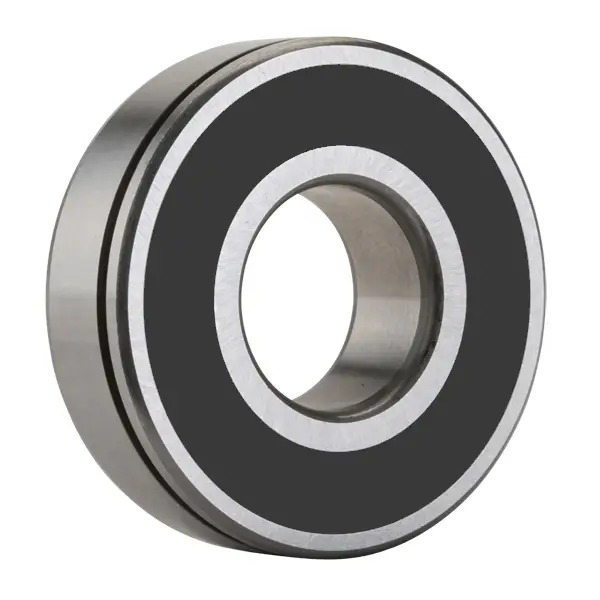

NTN 6014LBNC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
7100 RPM
Limiting Speed - Grease
6100 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Factor
15.6
Radial Internal Clearance
C3
Static Load Rating
31000 N
Dynamic Load Rating
42000 N
Enclosure
Single Sealed
Weight
0.604 kg
Operating Temperature Range
-40 to 120 ºC

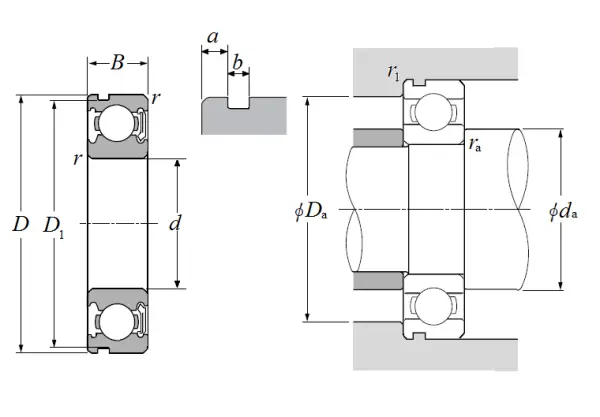

Dimensional Specifications
d
70.000 mm
D
110.000 mm
B
20.000 mm
D1
106.810 mm
a
2.870 mm
b
2.700 mm
r
1.100 mm
r1
0.500 mm
da min
76.500 mm
da max
80.500 mm
Da max
103.500 mm
ras max
1.000 mm
