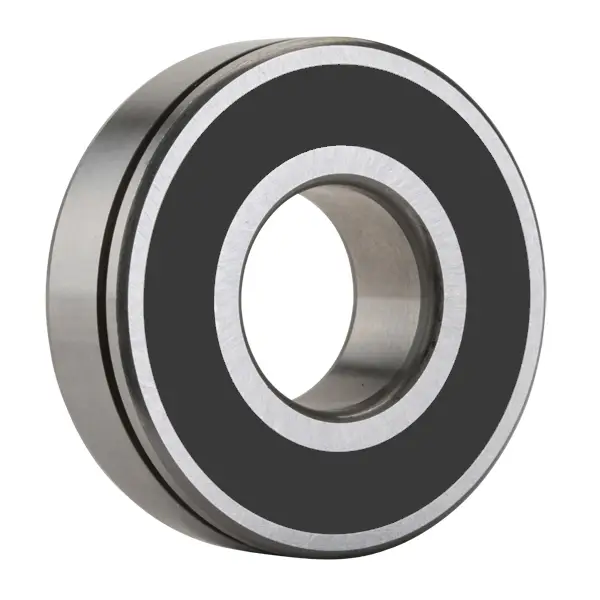

NTN 6014LLBN
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
6100 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Factor
15.6
Radial Internal Clearance
CN
Static Load Rating
31000 N
Dynamic Load Rating
42000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

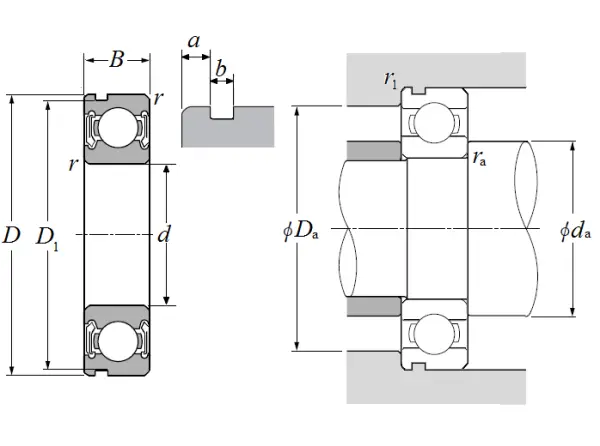

Dimensional Specifications
d
70.000 mm
D
110.000 mm
B
20.000 mm
D1
106.810 mm
a
2.870 mm
b
2.700 mm
r
1.100 mm
r1
0.500 mm
da min
76.500 mm
da max
80.500 mm
Da max
103.500 mm
ras max
1.000 mm
