NTN 6015ZZNRC3/EM
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Outside Ring Type
0
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Pressed Steel
Ball Material
Through Hardened Steel
Limiting Speed - Grease
5700 RPM
Precision
ISO Class 0
Configuration
One
Factor
15.8
Radial Internal Clearance
C3
Static Load Rating
33500 N
Dynamic Load Rating
44000 N
Enclosure
Metal Shield - Both Sides
Weight
0.649 kg
Operating Temperature Range
-40 to 120 ºC

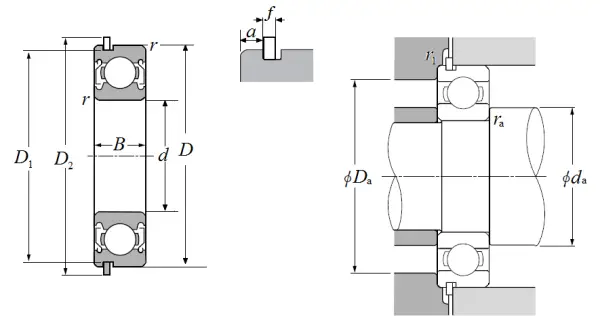

Dimensional Specifications
d
75.000 mm
D
115.000 mm
B
20.000 mm
D1
111.810 mm
D2
121.600 mm
a
2.870 mm
f
2.460 mm
r
1.100 mm
r1
0.500 mm
da min
81.500 mm
da max
85.500 mm
Da max
108.500 mm
ras max
1.000 mm
Specifications
Axial Static Load Rating
33500 N
Radial Dynamic Load Rating
44000 N
