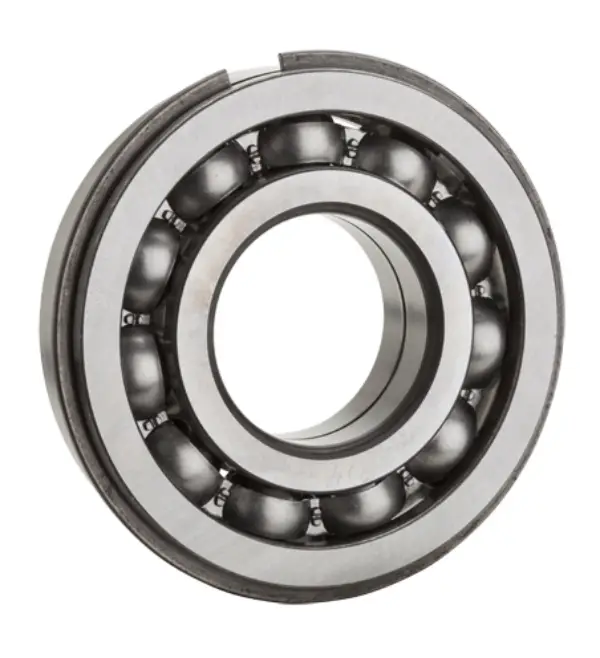

NTN 6017NRC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
5900 RPM
Limiting Speed - Grease
5000 RPM
Style
Radial Ball Bearing
Precision
ISO Class 0
Configuration
One
Factor
15.8
Radial Internal Clearance
C3
Static Load Rating
43000 N
Dynamic Load Rating
55000 N
Enclosure
Open
Weight
0.933 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
85.000 mm
D
130.000 mm
B
22.000 mm
D1
125.220 mm
D2
139.700 mm
a
2.870 mm
f
2.820 mm
r
1.100 mm
r1
0.500 mm
da min
91.500 mm
da max
97.000 mm
Da max
123.500 mm
ras max
1.000 mm
