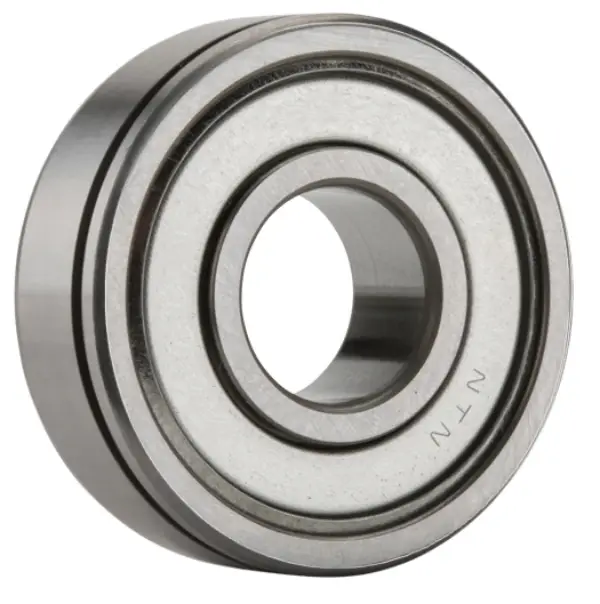

NTN 6018ZNC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
5600 RPM
Limiting Speed - Grease
4700 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
15.6
Radial Internal Clearance
C3
Static Load Rating
49500 N
Dynamic Load Rating
64500 N
Enclosure
Single Shielded
Weight
1.020 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
90.000 mm
D
140.000 mm
B
24.000 mm
D1
135.230 mm
a
3.710 mm
b
3.100 mm
r
1.500 mm
r1
0.500 mm
da min
98.000 mm
da max
102.000 mm
Da max
132.000 mm
ras max
1.500 mm
