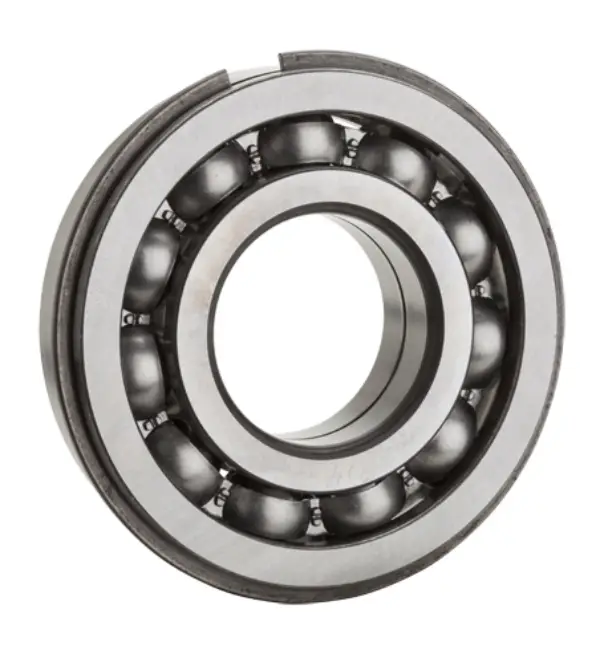

NTN 6019NRC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
5300 RPM
Limiting Speed - Grease
4500 RPM
Style
Radial Ball Bearing
Precision
ISO Class 0
Configuration
One
Factor
15.9
Radial Internal Clearance
C3
Static Load Rating
54000 N
Dynamic Load Rating
67000 N
Enclosure
Open
Weight
1.080 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
95.000 mm
D
145.000 mm
B
24.000 mm
D1
140.230 mm
D2
154.700 mm
a
3.710 mm
f
2.820 mm
r
1.500 mm
r1
0.500 mm
da min
103.000 mm
da max
109.000 mm
Da max
137.000 mm
ras max
1.500 mm
