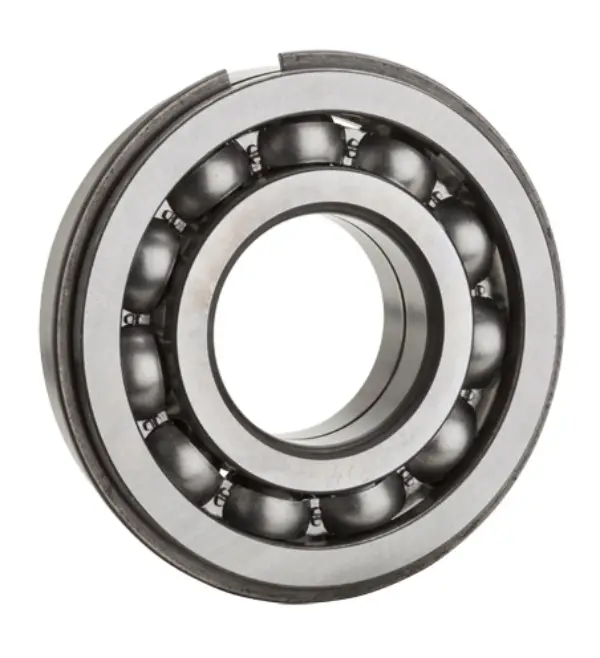

NTN 6020NRC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
5000 RPM
Limiting Speed - Grease
4200 RPM
Style
Radial Ball Bearing
Precision
ISO Class 0
Configuration
One
Factor
15.9
Radial Internal Clearance
C3
Static Load Rating
54000 N
Dynamic Load Rating
66500 N
Enclosure
Open
Weight
1.312 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
100.000 mm
D
150.000 mm
B
24.000 mm
D1
145.240 mm
D2
159.700 mm
a
3.710 mm
f
2.820 mm
r
1.500 mm
r1
0.500 mm
da min
108.000 mm
da max
110.000 mm
Da max
142.000 mm
ras max
1.500 mm
