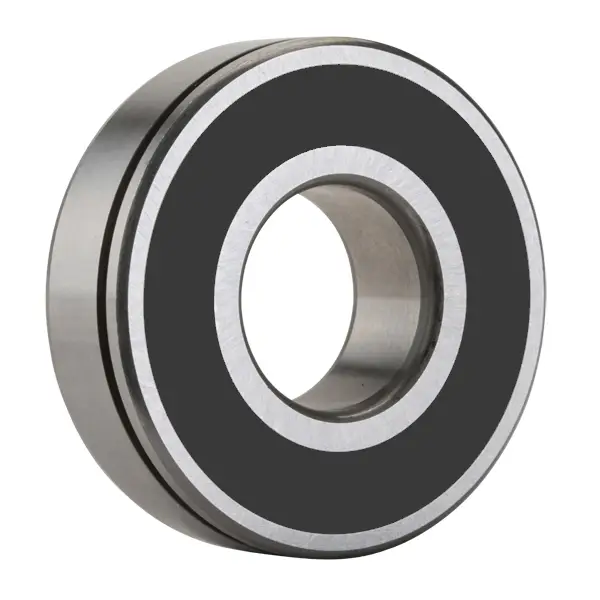

NTN 6022LLBNC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
3800 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Factor
15.6
Radial Internal Clearance
C3
Static Load Rating
73000 N
Dynamic Load Rating
91000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

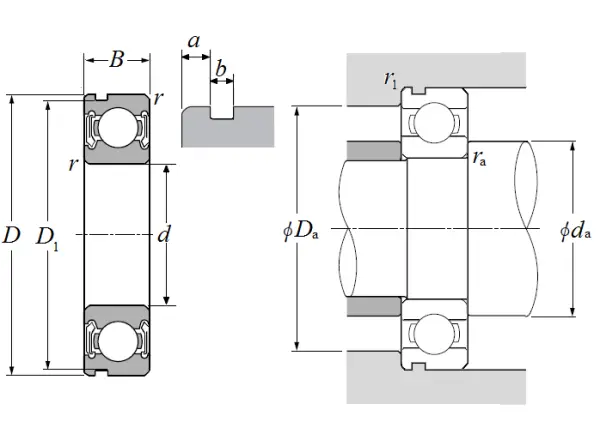

Dimensional Specifications
d
110.000 mm
D
170.000 mm
B
28.000 mm
D1
163.650 mm
a
3.710 mm
b
3.500 mm
r
2.000 mm
r1
0.500 mm
da min
119.000 mm
da max
126.000 mm
Da max
161.000 mm
ras max
2.000 mm
