NTN 6024LBNRC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
4100 RPM
Limiting Speed - Grease
3500 RPM
Seal Type
Non Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
15.9
Radial Internal Clearance
C3
Static Load Rating
79500 N
Dynamic Load Rating
94000 N
Enclosure
Single Sealed
Operating Temperature Range
-40 to 120 ºC

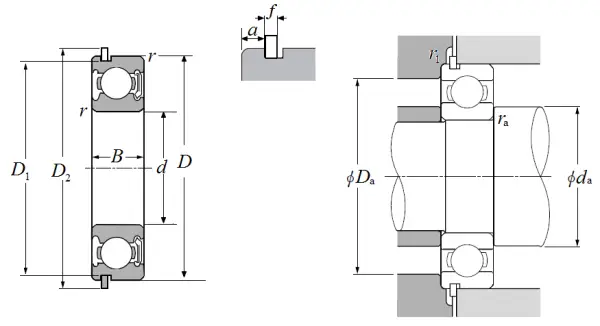

Dimensional Specifications
d
120.000 mm
D
180.000 mm
B
28.000 mm
D1
173.660 mm
D2
192.900 mm
a
3.710 mm
f
3.100 mm
r
2.000 mm
r1
0.500 mm
da min
129.000 mm
da max
136.000 mm
Da max
171.000 mm
ras max
2.000 mm
