NTN 6026LUNR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
1900 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
15.8
Radial Internal Clearance
CN
Static Load Rating
101000 N
Dynamic Load Rating
118000 N
Enclosure
Single Sealed
Operating Temperature Range
-40 to 120 ºC

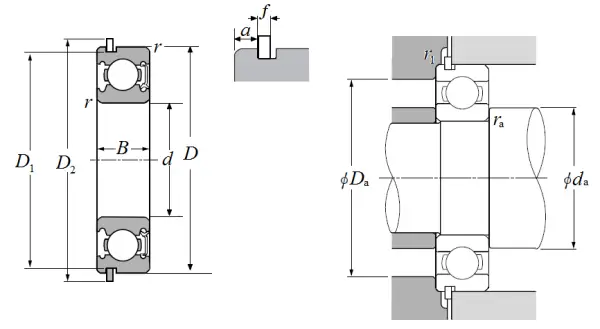

Dimensional Specifications
d
130.000 mm
D
200.000 mm
B
33.000 mm
D1
193.650 mm
D2
212.900 mm
a
5.690 mm
f
3.100 mm
r
2.000 mm
r1
0.500 mm
da min
139.000 mm
da max
148.000 mm
Da max
191.000 mm
ras max
2.000 mm
