NTN 6026ZNC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
3800 RPM
Limiting Speed - Grease
3200 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
15.8
Radial Internal Clearance
C3
Static Load Rating
101000 N
Dynamic Load Rating
118000 N
Enclosure
Single Shielded
Weight
3.160 kg
Operating Temperature Range
-40 to 120 ºC

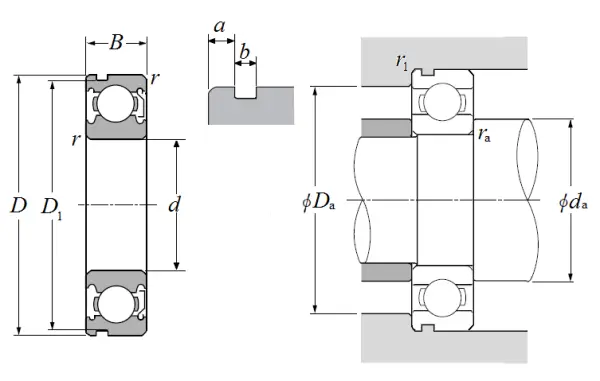

Dimensional Specifications
d
130.000 mm
D
200.000 mm
B
33.000 mm
D1
193.650 mm
a
5.690 mm
b
3.500 mm
r
2.000 mm
r1
0.500 mm
da min
139.000 mm
da max
148.000 mm
Da max
191.000 mm
ras max
2.000 mm
