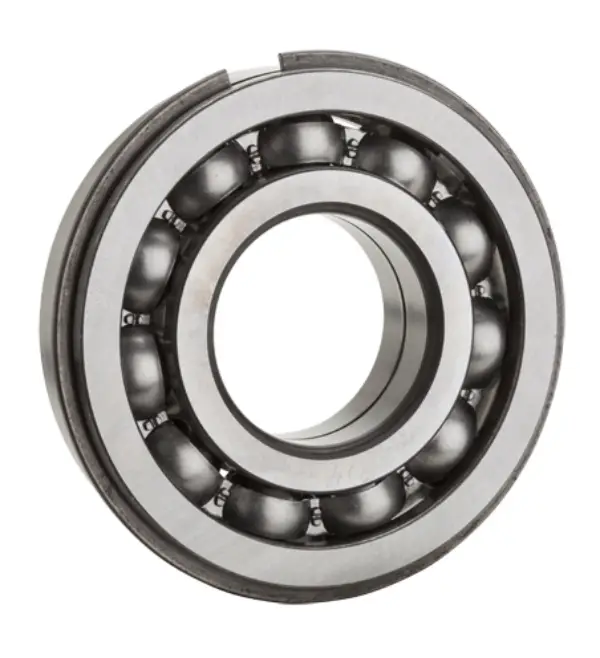

NTN 6028NRC2
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
3500 RPM
Limiting Speed - Grease
3000 RPM
Style
Radial Ball Bearing
Precision
ISO Class 0
Configuration
One
Factor
15.9
Radial Internal Clearance
C2
Static Load Rating
109000 N
Dynamic Load Rating
122000 N
Enclosure
Open
Weight
3.370 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
140.000 mm
D
210.000 mm
B
33.000 mm
a
6.500 mm
r
2.000 mm
da min
149.000 mm
da max
158.000 mm
Da max
201.000 mm
ras max
2.000 mm
