NTN 604
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
51000 RPM
Limiting Speed - Grease
43000 RPM
Precision
Class 0
Configuration
One
Factor
12.8
Radial Internal Clearance
CN
Static Load Rating
360 N
Dynamic Load Rating
1080 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

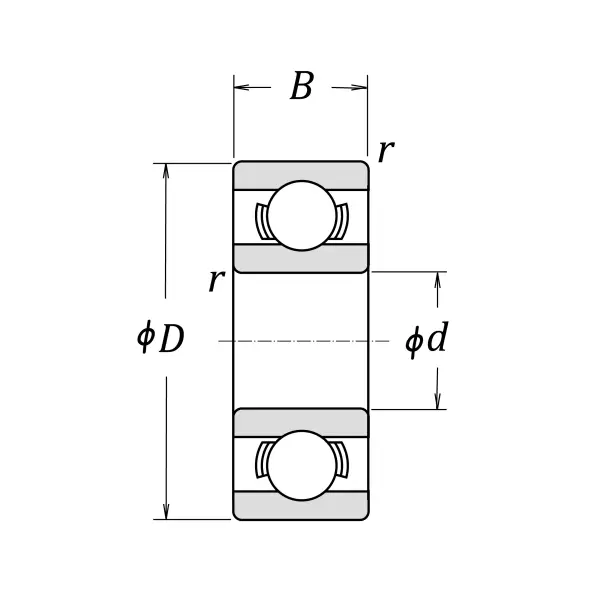

Dimensional Specifications
d
4.000 mm
D
12.000 mm
B
4.000 mm
r
0.200 mm

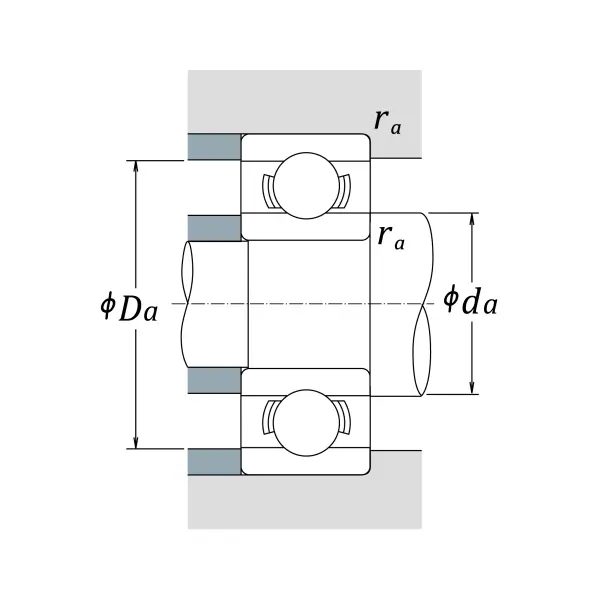

ras max
0.200 mm
