NTN 608LLB/7.938PX2
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
32000 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
Special Tolerance
Configuration
One
Factor
12.5
Radial Internal Clearance
CN
Static Load Rating
1400 N
Dynamic Load Rating
3700 N
Enclosure
Double Sealed
Weight
0.012 kg
Operating Temperature Range
-40 to 120 ºC

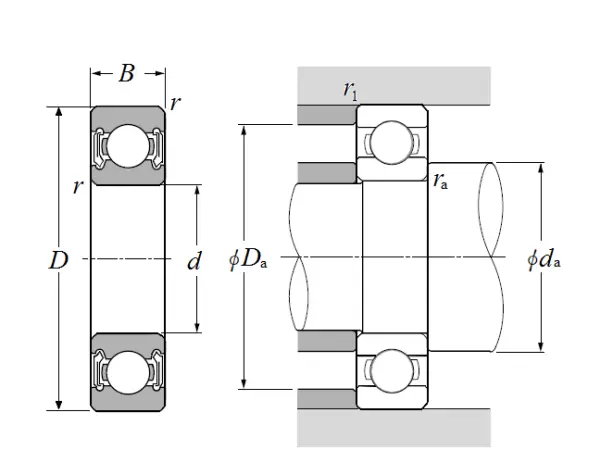

Dimensional Specifications
d
7.938 mm
D
22.000 mm
B
7.000 mm
r
0.300 mm
