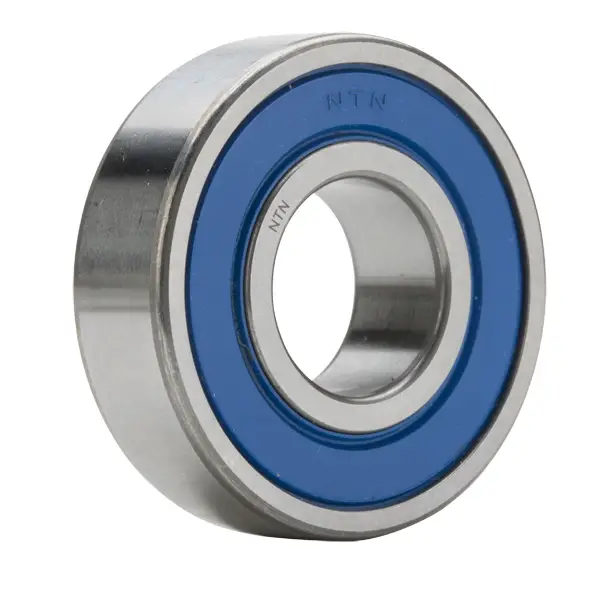

NTN 608LLHAC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Goove Ball Bearing
Bore Type
Round
Outside Ring Type
0
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Pressed Steel
Ball Material
Through Hardened Steel
Limiting Speed - Grease
32000 RPM
Seal Type
Contact
Seal Material
Polyacrylic
Precision
ISO Class 6
Configuration
One
Factor
12.5
Radial Internal Clearance
C3
Static Load Rating
1400 N
Dynamic Load Rating
3350 N
Enclosure
Light Contact Seal - Both Sides
Weight
0.011 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
8.000 mm
D
22.000 mm
B
7.000 mm
r
0.300 mm
r1
0.300 mm
da min
10 mm
da max
12.2 mm
Da max
20.000 mm
ras max
0.300 mm
Specifications
Axial Static Load Rating
1400 N
Radial Dynamic Load Rating
3350 N
