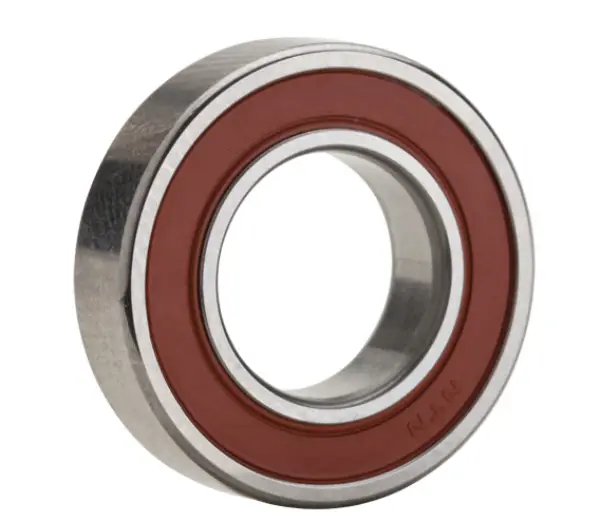

NTN 608LLUC3/EM
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
23000 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
12.5
Radial Internal Clearance
C3
Static Load Rating
1400 N
Dynamic Load Rating
3700 N
Enclosure
Double Sealed
Weight
0.012 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
8.000 mm
D
22.000 mm
B
7.000 mm
r
0.300 mm
