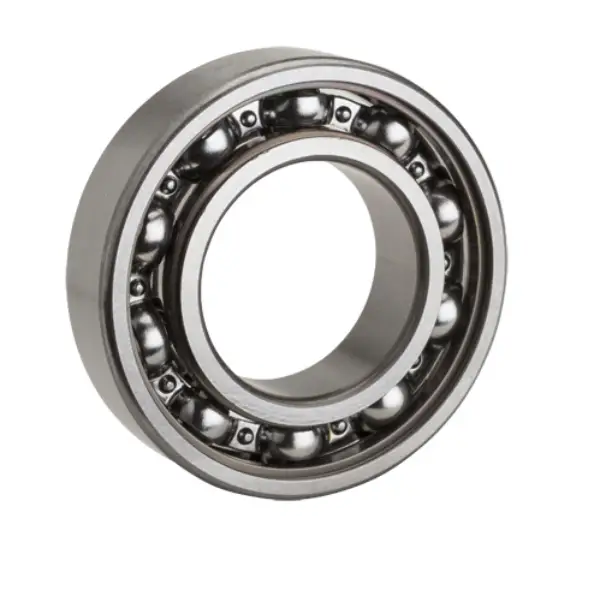

NTN 61800G15
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Oil
38000 RPM
Limiting Speed - Grease
32000 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
14.8
Radial Internal Clearance
CN
Static Load Rating
925 N
Dynamic Load Rating
2030 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
10.000 mm
D
19.000 mm
B
5.000 mm
r
0.300 mm
