NTN 62/28Z
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
14000 RPM
Limiting Speed - Grease
12000 RPM
Precision
ISO Class 0
Configuration
One
Factor
53.0
Radial Internal Clearance
CN
Static Load Rating
9750 N
Dynamic Load Rating
19800 N
Enclosure
Single Shielded
Operating Temperature Range
-40 to 120 ºC

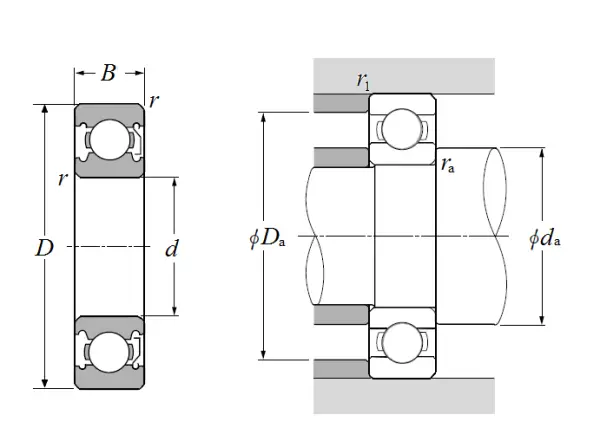

Dimensional Specifications
d
28.000 mm
D
58.000 mm
B
16.000 mm
r
1.000 mm
r1
0.500 mm
da min
33.000 mm
da max
35.500 mm
Da max
53.000 mm
ras max
1.000 mm
