NTN 6200Z
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
30000 RPM
Limiting Speed - Grease
25000 RPM
Precision
ISO Class 0
Configuration
One
Factor
26.0
Radial Internal Clearance
CN
Static Load Rating
2390 N
Dynamic Load Rating
5650 N
Enclosure
Single Shielded
Weight
0.031 kg
Operating Temperature Range
-40 to 120 ºC

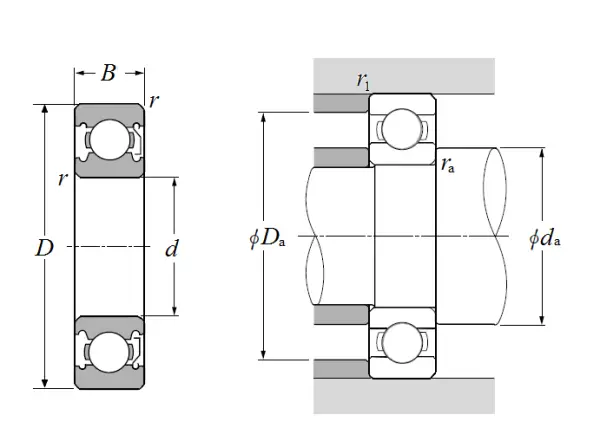

Dimensional Specifications
d
10.000 mm
D
30.000 mm
B
9.000 mm
r
0.600 mm
r1
0.500 mm
da min
14.000 mm
da max
16.000 mm
Da max
26.000 mm
ras max
0.600 mm
