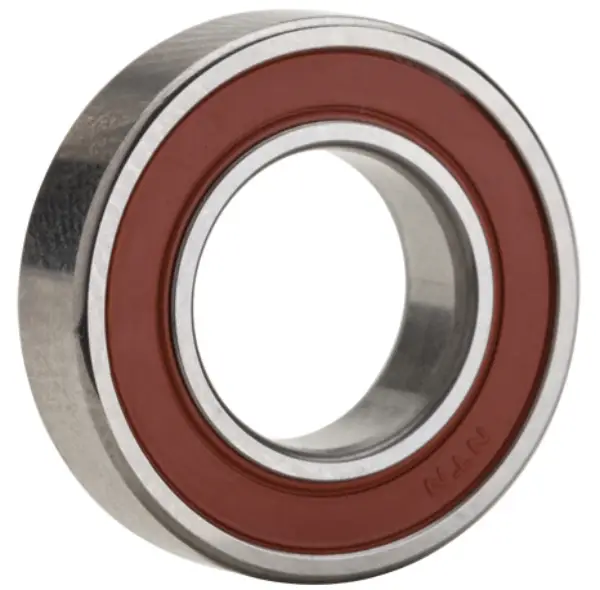

NTN 6202FT150
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
13000 RPM
Limiting Speed - Grease
13000 RPM
Seal Type
Contact
Seal Material
Viton
Precision
ISO Class 0
Configuration
One
Factor
12.7
Radial Internal Clearance
C3
Static Load Rating
3600 N
Dynamic Load Rating
8600 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 150 ºC
Dimensional Specifications
d
15.000 mm
D
35.000 mm
B
11.000 mm
r
0.600 mm
r1
0.500 mm
da min
19.000 mm
da max
20.000 mm
Da max
31.000 mm
ras max
0.600 mm
