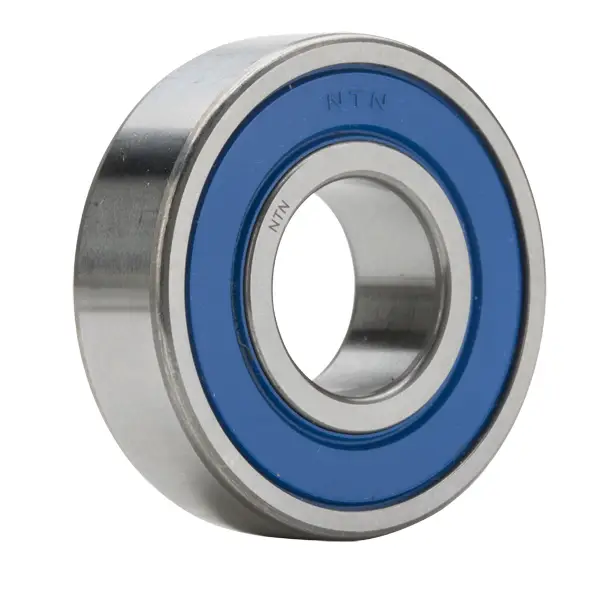

NTN 6202LLHAC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Goove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
18000 RPM
Seal Type
Contact
Seal Material
Polyacrylic
Precision
P0
Configuration
One
Factor
12.7
Radial Internal Clearance
C3
Static Load Rating
3600 N
Dynamic Load Rating
8600 N
Enclosure
Double Sealed
Weight
0.041 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
15.000 mm
D
35.000 mm
B
11.000 mm
r
0.600 mm
r1
0.600 mm
da min
19.000 mm
da max
20.000 mm
Da max
31.000 mm
ras max
0.600 mm
