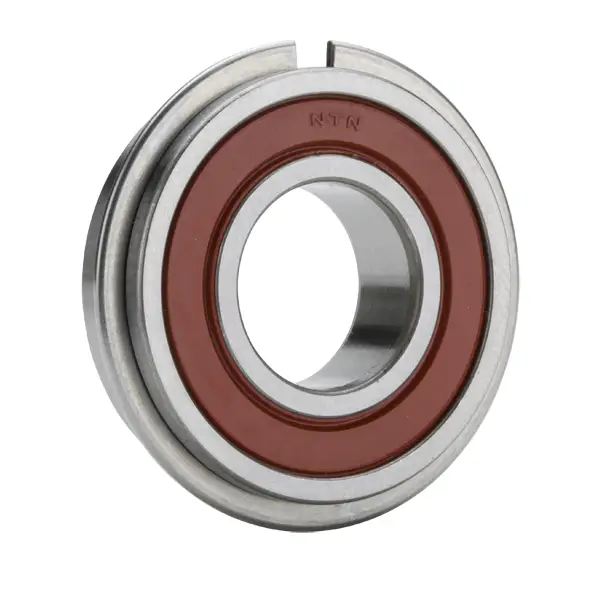

NTN 6204LUNR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
10000 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
13.2
Radial Internal Clearance
CN
Static Load Rating
6650 N
Dynamic Load Rating
14200 N
Enclosure
Single Sealed
Operating Temperature Range
-40 to 120 ºC

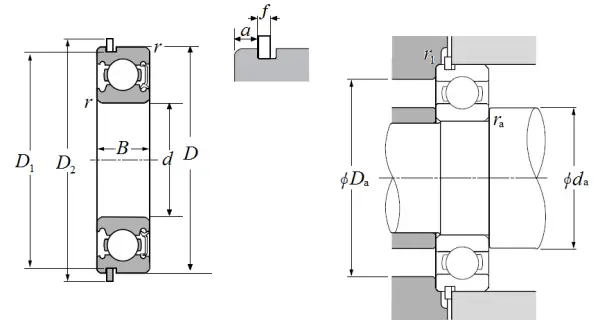

Dimensional Specifications
d
20.000 mm
D
47.000 mm
B
14.000 mm
D1
44.600 mm
D2
52.700 mm
a
2.460 mm
f
1.120 mm
r
1.000 mm
r1
0.500 mm
da min
25.000 mm
da max
28.000 mm
Da max
42.000 mm
ras max
1.000 mm
