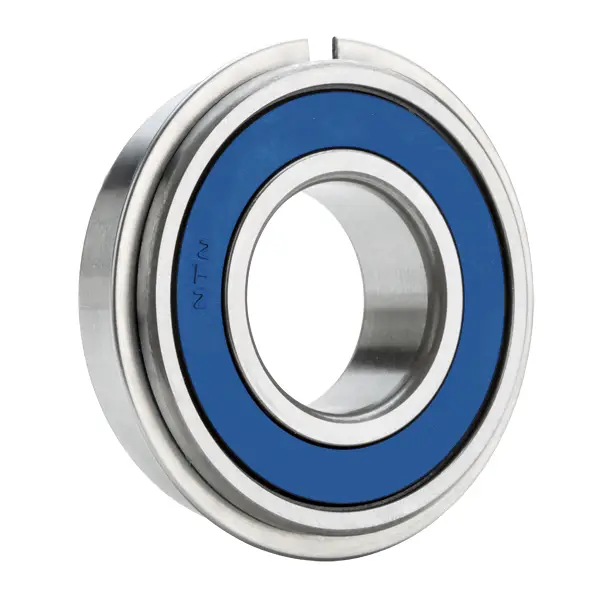

NTN 6205LLHNR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
11000 RPM
Seal Type
Light Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
13.9
Static Load Rating
7850 N
Dynamic Load Rating
15500 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
25.000 mm
D
52.000 mm
B
15.000 mm
D1
49.730 mm
D2
57.900 mm
a
2.060 mm
f
1.120 mm
r
1.000 mm
r1
0.500 mm
da min
30.000 mm
da max
32.000 mm
Da max
47.000 mm
ras max
1.000 mm
