NTN 6205N
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
15000 RPM
Limiting Speed - Grease
13000 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
13.9
Radial Internal Clearance
CN
Static Load Rating
7850 N
Dynamic Load Rating
15500 N
Enclosure
Open
Weight
0.125 kg
Operating Temperature Range
-40 to 120 ºC

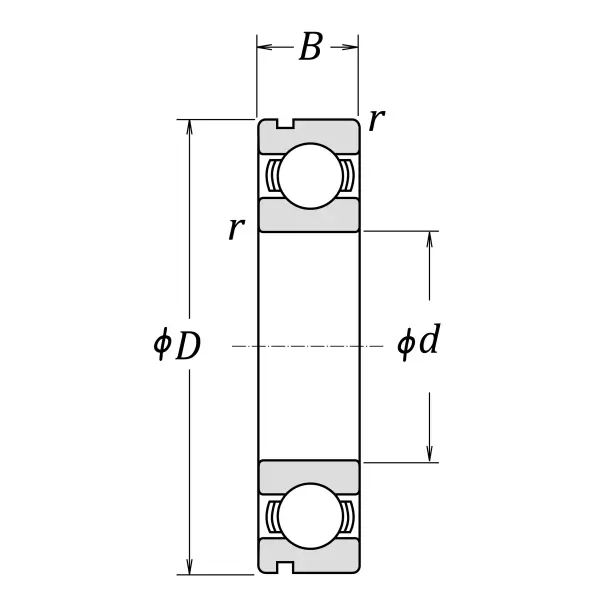

Dimensional Specifications
d
25.000 mm
D
52.000 mm
B
15.000 mm

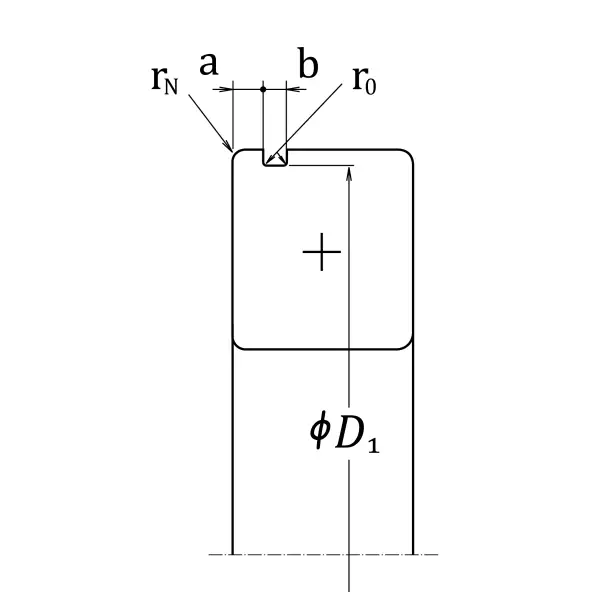

D1
49.730 mm
a
2.060 mm
b
1.350 mm
r
1.000 mm
r1
0.500 mm

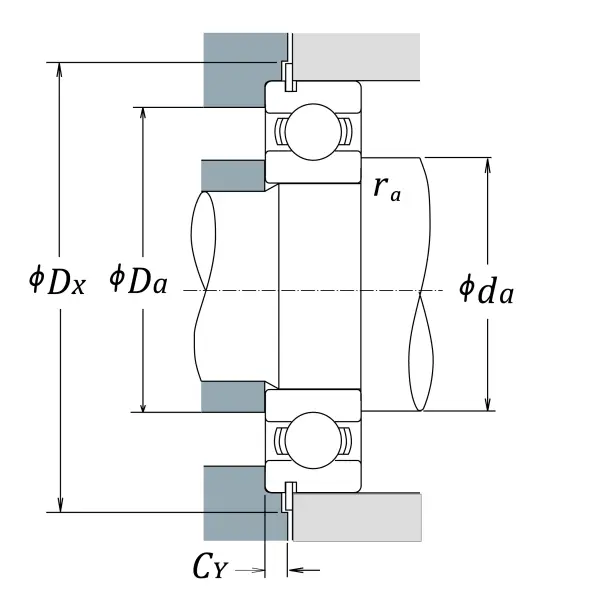

da min
30.000 mm
da max
32.000 mm
Da max
47.000 mm
ras max
1.000 mm
