NTN 6206BLUX/32C4/5A
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Single Row Deep Grove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
7300 RPM
Limiting Speed - Grease
7300 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Radial Internal Clearance
C4
Static Load Rating
11300 N
Dynamic Load Rating
21600 N
Enclosure
Single Seal
Operating Temperature Range
-40 to 120 ºC

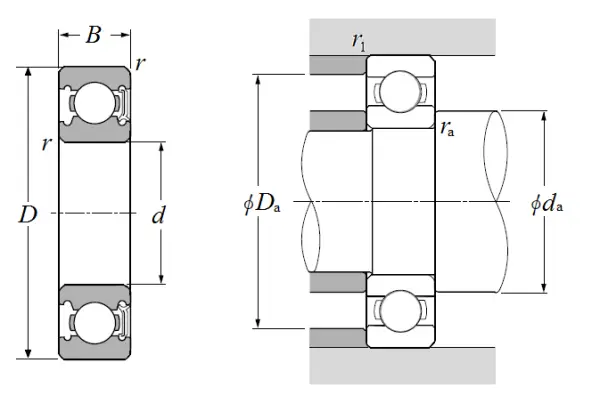

Dimensional Specifications
d
32.000 mm
D
62.000 mm
B
16.000 mm
