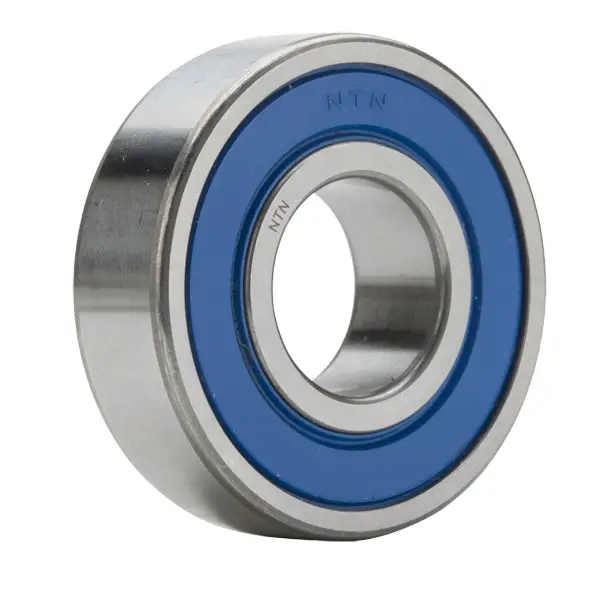

NTN 6206LLHAC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Goove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
8800 RPM
Seal Type
Contact
Seal Material
Polyacrylic
Precision
P0
Configuration
One
Factor
13.8
Radial Internal Clearance
C3
Static Load Rating
11300 N
Dynamic Load Rating
21600 N
Enclosure
Double Sealed
Weight
0.170 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
30.000 mm
D
62.000 mm
B
16.000 mm
r
1.000 mm
r1
1.000 mm
da min
35.000 mm
da max
39.000 mm
Da max
57.000 mm
ras max
1.000 mm
