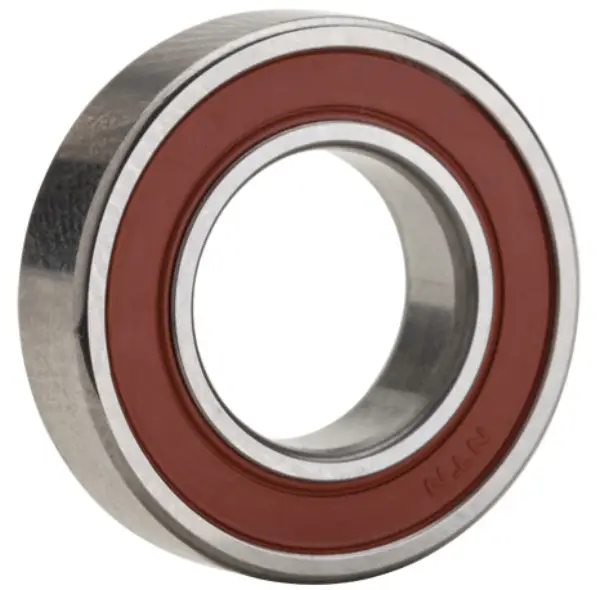

NTN 6207F604
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
50 RPM
Limiting Speed - Grease
50 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
13.8
Radial Internal Clearance
CN
Static Load Rating
15300 N
Dynamic Load Rating
28400 N
Enclosure
Double Shielded
Weight
0.282 kg
Operating Temperature Range
-40 to 660 ºC
Notes
Contact Engineering
Dimensional Specifications
d
35.000 mm
D
72.000 mm
B
17.000 mm
r
1.000 mm
r1
0.500 mm
da min
41.500 mm
da max
45.000 mm
Da max
65.500 mm
ras max
1.000 mm
