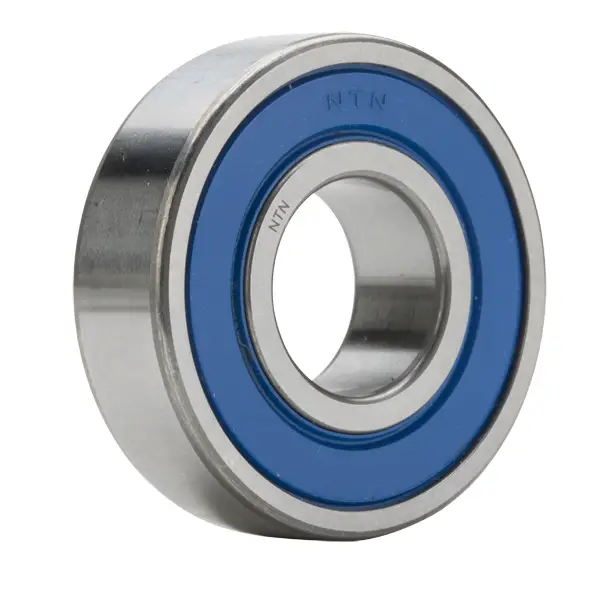

NTN 6207LLH
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
7600 RPM
Seal Type
Light Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
13.8
Radial Internal Clearance
CN
Static Load Rating
15300 N
Dynamic Load Rating
28400 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
35.000 mm
D
72.000 mm
B
17.000 mm
r
1.000 mm
r1
0.500 mm
da max
45.000 mm
ras max
1.000 mm
